Custom EVA Foam Sheet Manufacturer
Order custom EVA foam sheet in specified thicknesses, densities, hardness levels, colors and sizes, with adhesive backing, lamination, cutting and OEM support.
Consult Now
EVA Foam Sheets Made to Your Production Specification
Damao Tech manufactures custom EVA foam sheet for industrial converters, packaging producers, footwear brands, automotive suppliers, and product manufacturers. Order flat sheet stock for your own converting line or receive finished OEM parts with cutting, adhesive backing, lamination, embossing, and color matching completed before delivery.
This page focuses on sheet purchasing and processing. For material properties, formulation choices, molded components, and other supply forms, visit our custom EVA foam manufacturer page.
Custom EVA Foam Sheets for OEM Production
Source EVA foam sheet stock or move directly to finished OEM parts. We configure sheet thickness, density, hardness, dimensions, color, surface and lamination around your application before sampling.
- Thickness
- 1–100 mm+
- Density
- 30–250 kg/m³
- Hardness
- 15–80 Shore C
- Supply forms
- Sheets, rolls & cut parts
OEM sheet customization
- Custom sheet dimensions
- Pantone color matching
- PSA adhesive backing
- Fabric or film lamination
- Smooth or embossed surfaces
- CNC routing and die cutting
How to Specify an EVA Foam Sheet
An accurate sheet specification starts with the function of the final part. Cushioning, sealing, surface protection, structural support, and decorative applications place different demands on density, hardness, thickness, surface finish, and compression behavior. Share the end use with your dimensional requirements so our team can review the complete stack-up before sampling.
Thickness
Specify nominal thickness and tolerance. We support thin converting stock, general-purpose sheets, and thicker sheet or block formats up to 100 mm+.
Density
Choose within a 30–250 kg/m³ range according to weight, resilience, cutting detail, and load-bearing requirements.
Hardness
Use Shore C hardness to define the required feel and resistance to indentation. Available grades span soft cushioning to firm support.
Dimensions
Order standard sheet stock or custom length and width to reduce trimming, scrap, and handling on your production line.

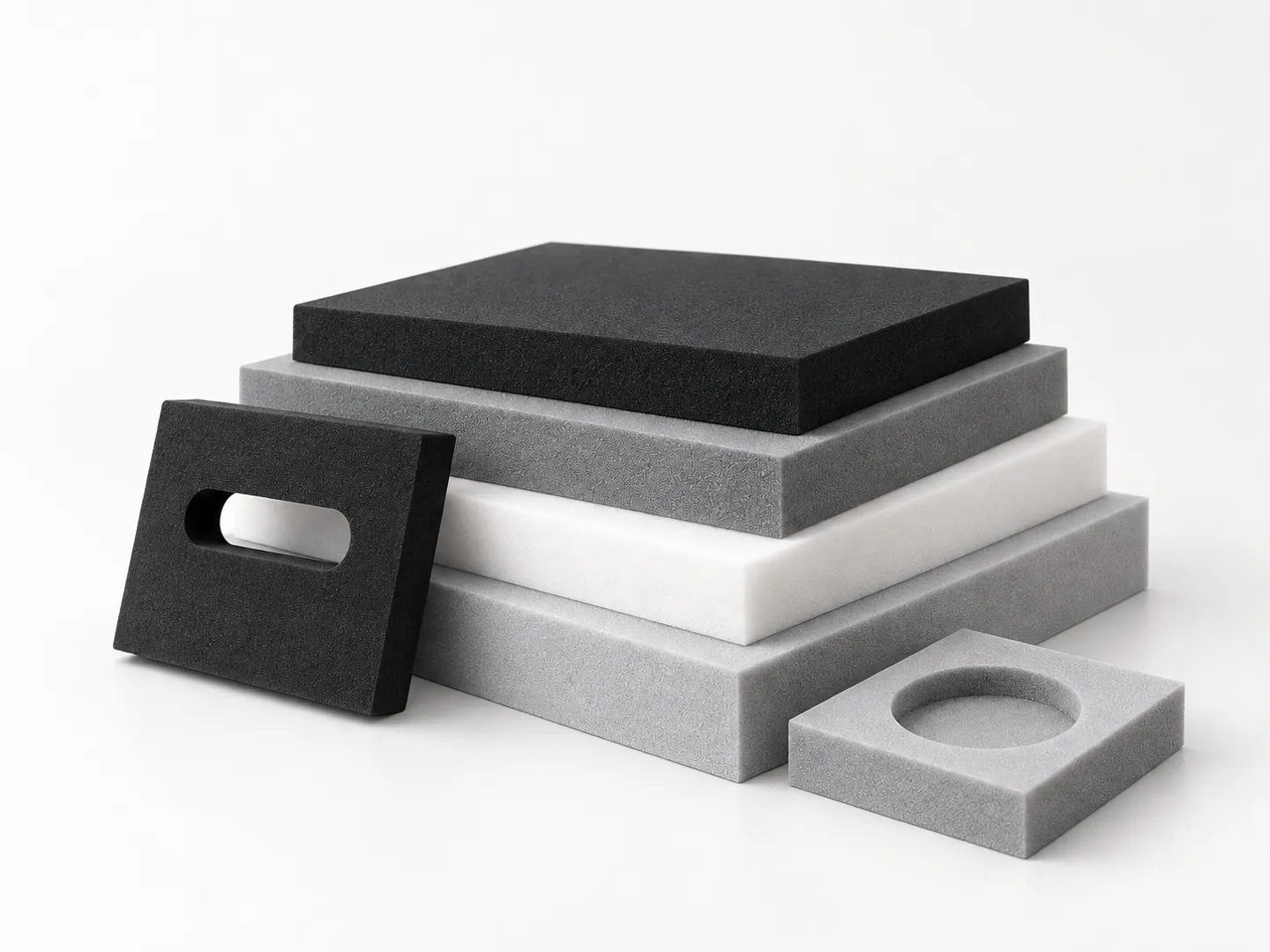

Sheet Grade Selection Starts with the Application
OEM EVA Foam Sheet Processing
We can supply raw EVA sheet stock or complete secondary processing before shipment. Selecting the right conversion method depends on part geometry, order volume, edge finish, tolerance, surface treatment, and tooling budget.
Die Cutting
Efficient repeat production for pads, seals, gaskets, liners, and simple profile parts with consistent outlines.
CNC Routing
Machined pockets, stepped depths, contours, and presentation layouts for protective cases and equipment packaging.
Skiving & Splitting
Controlled sheet thickness prepared from larger blocks for converting, lamination, and multi-layer assemblies.
Adhesive Backing
Pressure-sensitive adhesive can be laminated to one or both sides with a release liner for faster assembly.
Surface Lamination
Add fabric, film, or another foam layer where appearance, abrasion resistance, identification, or assembly requires it.
Color & Texture
Choose black, white, or a custom color and specify a smooth or embossed surface for the finished application.

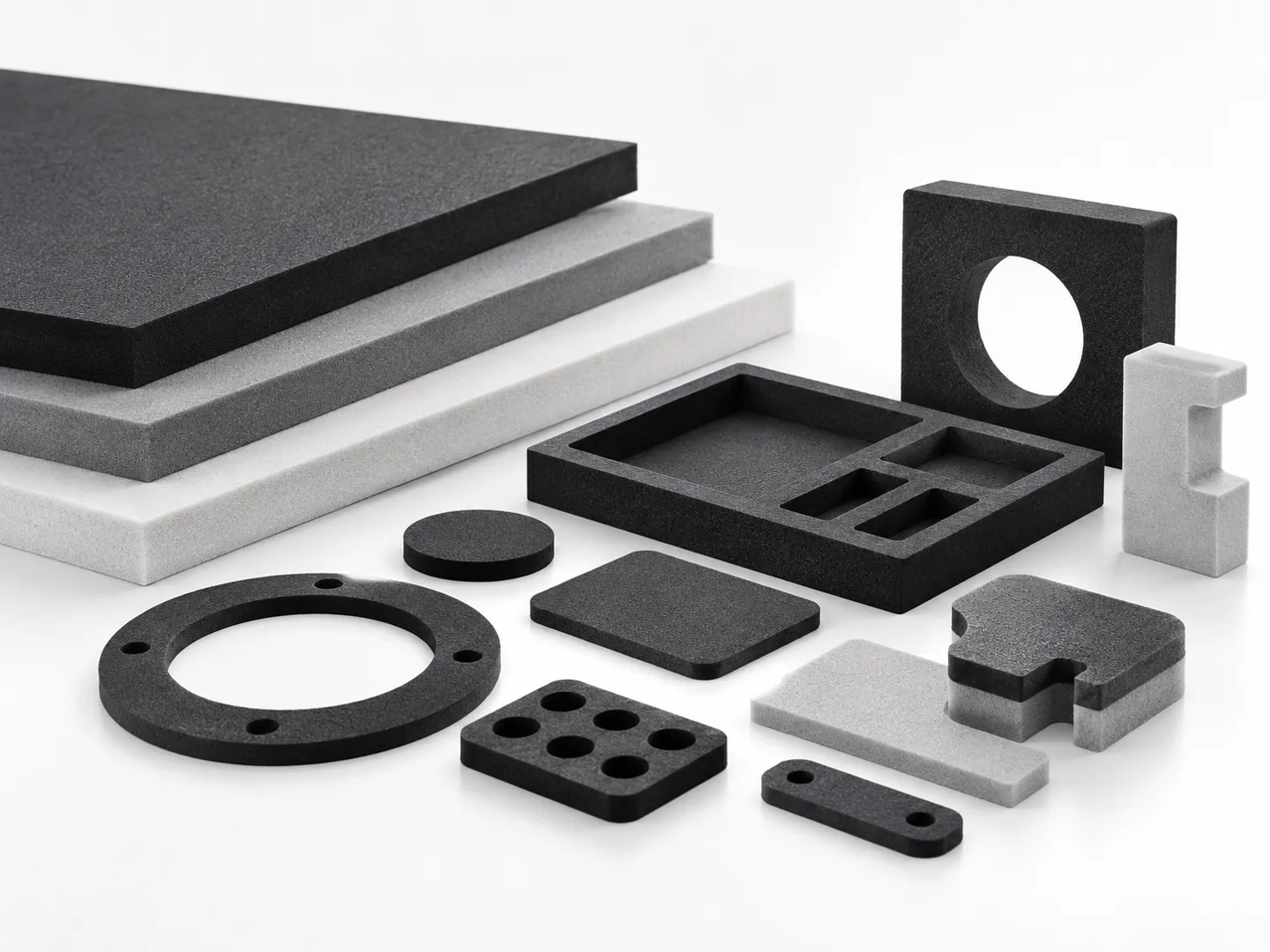

From Sheet Stock to Finished OEM Parts
Common EVA Foam Sheet Applications
Protective Packaging
CNC-routed trays, case interiors, dividers, presentation inserts, and cushioning layers for tools, electronics, instruments, and equipment.
Gaskets & Pads
Die-cut seals, spacers, anti-vibration pads, surface-protection pieces, and adhesive-backed assembly components.
Footwear & Sports
Sheet material for insoles, midsoles, padding, grips, exercise products, and components that require cushioning and rebound.
Consumer & Creative
Color-matched sheets for toys, display parts, craft kits, costumes, props, and branded products that need clean cutting and a consistent surface.
EVA Foam Sheet RFQ and Sampling Process
1. Define
Send length, width, thickness, density or hardness, color, surface, backing, tolerance, and estimated order quantity.
2. Review
We check the sheet grade, supply format, processing method, drawing details, and any testing or packing requirements.
3. Sample
A sample confirms material feel, dimensions, color, surface, lamination, and converted-part fit before volume production.
4. Produce
Production follows the approved specification, with inspection and packing arranged around the sheet or finished-part format.
For the fastest review, attach a drawing in PDF, DXF, DWG, STEP, or another available engineering format. If no drawing exists, send the required dimensions and clear photos of the application. Use our EVA foam requirement checklist to prepare the RFQ.
EVA Foam Sheet Formats & Finishing
Examples of sheet stock, color options, adhesive backing, and roll formats prepared for further converting or OEM production.
Flat EVA foam sheet stock in multiple thicknesses.
Color-matched sheet material for visible product applications.

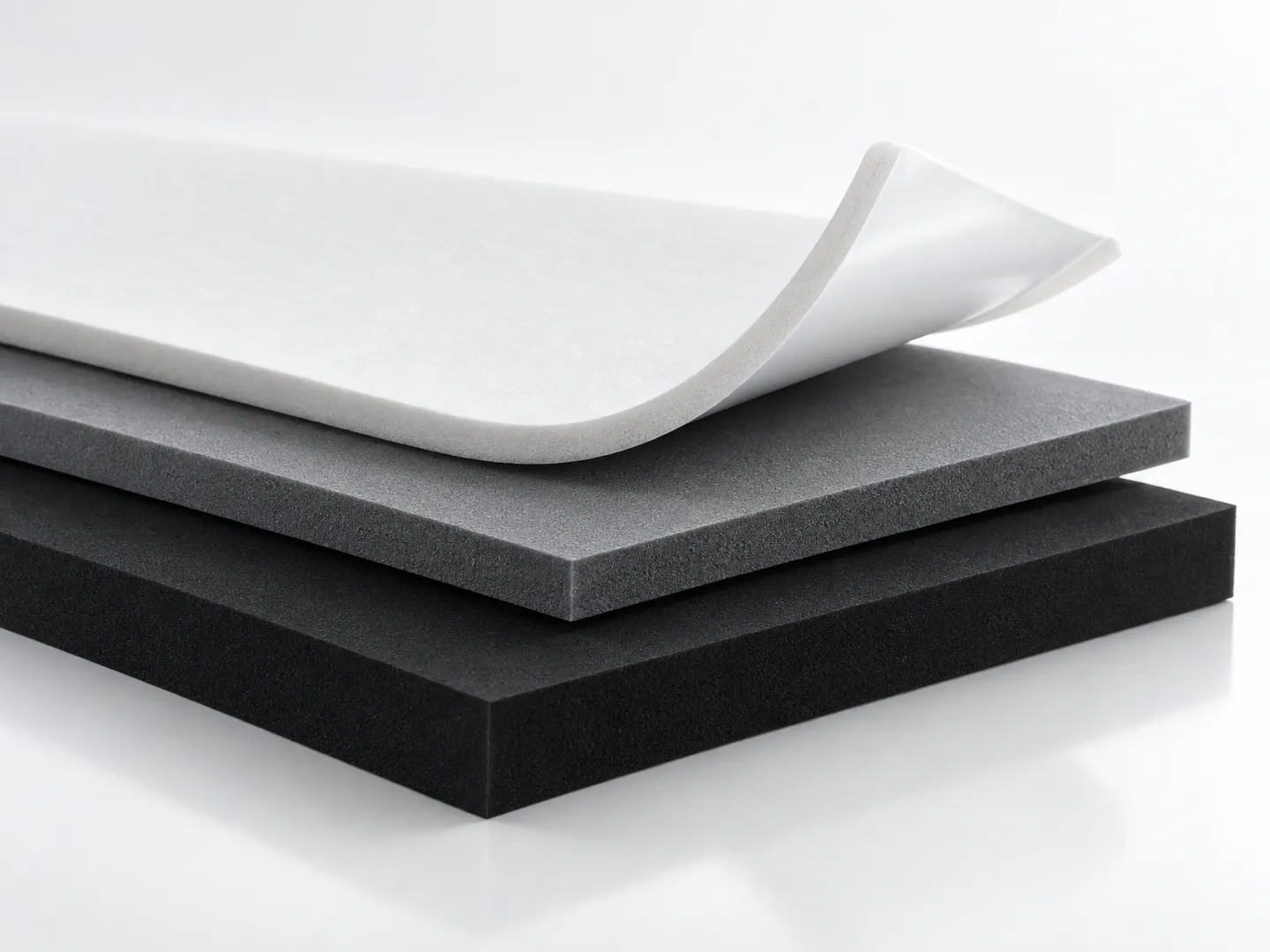

Pressure-sensitive adhesive backing with release liner.
Roll formats support continuous high-volume converting.
Related EVA Foam Resources
- EVA Foam Sheet Specification Guide Compare thickness, density, hardness, dimensions, tolerances, and surface options before ordering.
- Custom Cut EVA Foam Choose between die cutting, CNC routing, laser cutting, and other conversion methods.
- EVA Foam Packaging Inserts Plan protective layouts, cavities, layer construction, and presentation details for case inserts.
- EVA Foam Cost Guide Understand how grade, thickness, tooling, processing, order size, and freight affect pricing.
Frequently Asked Questions
Technical Specs
Core technical parameters and performance indicators for precision EVA foam production.
- Material Closed-Cell EVA Foam Sheet
- Thickness Range 1–100 mm+
- Density Range 30–250 kg/m³
- Hardness Range 15–80 Shore C
- Sheet Size Standard or Custom Cut-to-Size
- Finishing PSA, Lamination, Embossing & Cutting
